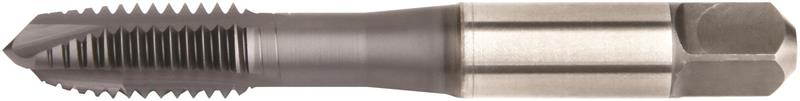

M10 x 1.5 TiCN Coated 3 Flute D6 HSS-E Form B Plug Chamfer Spiral Point Tap
- Item Code: VTSPO5525 WP42EG
- Brand: WIDIA
- Unit Size: 1
Description
Series VT-SPO
Multipurpose Taps
VariTap™ Spiral-Point HSS-E Taps
Through Holes
Tech Specs
Back To Top| Square Size | 7.21 MM |
|---|---|
| Thread Length | 19.10 MM |
| Material | HSS Cobalt |
| Thread Type | METRIC |
| Coolant Through (Yes/No) | No |
| Unit of Measure | Metric |
| Coating | TiCN |
| Number of Flutes | 3 |
| Overall Length | 74.30 MM |
| Product Name | Tap |
| Shank Style | Square |
| Thread Limit | D6 |
| Diameter | M10 X 1.5 |
| Flute Style | Straight |
| Grade | WP42EG |
| Brand | WIDIA |
| Hand of Tool | Neutral |
| Shank Length | 35.80 MM |
| Chamfer | Plug |
| Pitch | 1.50 MM |
| Shank Diameter | 9.677 MM |
