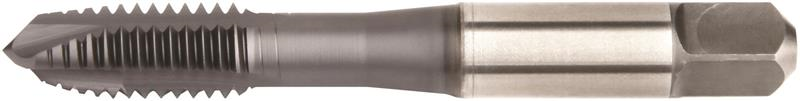

M12 x 1.25 Oxide 3 Flute D6 HSS-E Form B Plug Chamfer Spiral Point Tap
- Item Code: VTSPO5527 WP49EG
- Brand: WIDIA
- Unit Size: 1
Description
Series VT-SPO
Multipurpose Taps
VariTap™ Spiral-Point HSS-E Taps
Through Holes
Tech Specs
Back To Top| Diameter | M12 X 1.25 |
|---|---|
| Overall Length | 85.80 MM |
| Shank Diameter | 9.322 MM |
| Shank Length | 41.60 MM |
| Material | HSS Cobalt |
| Chamfer | Plug |
| Coating | Oxide |
| Grade | WP49EG |
| Coolant Through (Yes/No) | No |
| Pitch | 1.25 MM |
| Unit of Measure | Metric |
| Hand of Tool | Neutral |
| Number of Flutes | 3 |
| Shank Style | Square |
| Square Size | 6.91 MM |
| Thread Limit | D6 |
| Thread Type | METRIC FINE |
| Brand | WIDIA |
| Flute Style | Straight |
| Product Name | Tap |
| Thread Length | 23.90 MM |
