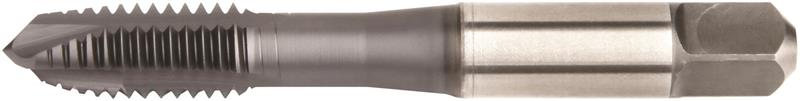

M12 x 1.75 TiCN Coated 3 Flute D6 HSS-E Form B Plug Chamfer Spiral Point Tap
- Item Code: VTSPO5531 WP42EG
- Brand: WIDIA
- Unit Size: 1
Description
Series VT-SPO
Multipurpose Taps
VariTap™ Spiral-Point HSS-E Taps
Through Holes
Tech Specs
Back To Top| Shank Length | 41.70 MM |
|---|---|
| Square Size | 6.91 MM |
| Brand | WIDIA |
| Flute Style | Straight |
| Hand of Tool | Neutral |
| Number of Flutes | 3 |
| Pitch | 1.75 MM |
| Shank Style | Square |
| Thread Limit | D6 |
| Material | HSS Cobalt |
| Overall Length | 85.90 MM |
| Shank Diameter | 9.322 MM |
| Coating | TiCN |
| Diameter | M12 X 1.75 |
| Grade | WP42EG |
| Thread Type | METRIC |
| Unit of Measure | Metric |
| Product Name | Tap |
| Thread Length | 23.90 MM |
| Chamfer | Plug |
| Coolant Through (Yes/No) | No |
