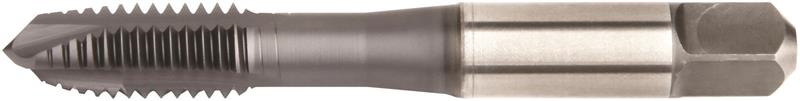

M20 x 2.5 TiCN Coated 3 Flute D8 HSS-E Form B Plug Chamfer Spiral Point Tap
- Item Code: VTSPO5540 WP42EG
- Brand: WIDIA
- Unit Size: 1
Description
Series VT-SPO
Multipurpose Taps
VariTap™ Spiral-Point HSS-E Taps
Through Holes
Tech Specs
Back To Top| Overall Length | 113.50 MM |
|---|---|
| Shank Diameter | 16.561 MM |
| Shank Length | 60.70 MM |
| Square Size | 12.34 MM |
| Coating | TiCN |
| Product Name | Tap |
| Brand | WIDIA |
| Diameter | M20 X 2.5 |
| Flute Style | Straight |
| Hand of Tool | Neutral |
| Number of Flutes | 3 |
| Shank Style | Square |
| Thread Limit | D7 |
| Chamfer | Plug |
| Coolant Through (Yes/No) | No |
| Material | HSS Cobalt |
| Pitch | 2.50 MM |
| Thread Length | 31.00 MM |
| Grade | WP42EG |
| Thread Type | METRIC |
| Unit of Measure | Metric |
