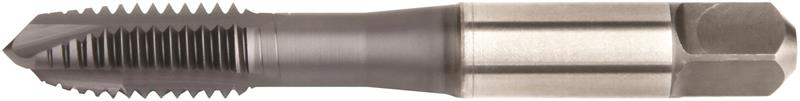

M24 x 3 Oxide 3 Flute D8 HSS-E Form B Plug Chamfer Spiral Point Tap
- Item Code: VTSPO5544 WP49EG
- Brand: WIDIA
- Unit Size: 1
Description
Series VT-SPO
Multipurpose Taps
VariTap™ Spiral-Point HSS-E Taps
Through Holes
Tech Specs
Back To Top| Overall Length | 124.70 MM |
|---|---|
| Pitch | 3.00 MM |
| Thread Length | 31.00 MM |
| Chamfer | Plug |
| Coating | Oxide |
| Thread Limit | D8 |
| Material | HSS Cobalt |
| Thread Type | METRIC |
| Square Size | 14.40 MM |
| Shank Length | 66.30 MM |
| Brand | WIDIA |
| Coolant Through (Yes/No) | No |
| Number of Flutes | 3 |
| Shank Style | Square |
| Unit of Measure | Metric |
| Diameter | M24 X 3 |
| Grade | WP49EG |
| Hand of Tool | Neutral |
| Flute Style | Straight |
| Product Name | Tap |
| Shank Diameter | 19.314 MM |
