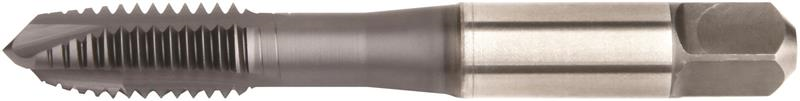

M4 x 0.7 TiCN Coated 3 Flutes D4 HSS-E Form B Plug Chamfer Spiral Point Tap
- Item Code: VTSPO5617 WP42EG
- Brand: WIDIA
- Unit Size: 1
Description
Series VT-SPO
Multipurpose Taps
VariTap™ Spiral-Point HSS-E Taps
Through Holes
Tech Specs
Back To Top| Coolant Through (Yes/No) | No |
|---|---|
| Unit of Measure | Metric |
| Hand of Tool | Right Hand |
| Grade | WP42EG |
| Thread Type | METRIC |
| Number of Flutes | 3 |
| Shank Length | 30.20 MM |
| Shank Style | Square |
| Chamfer | Plug |
| Thread Limit | D4 |
| Material | HSS-E-PM |
| Pitch | 0.70 MM |
| Brand | WIDIA |
| Coating | TiCN |
| Diameter | M4 X 0.7 |
| Overall Length | 53.80 MM |
| Product Name | Tap |
| Square Size | 3.28 MM |
| Shank Diameter | 4.267 MM |
| Thread Length | 9.70 MM |
