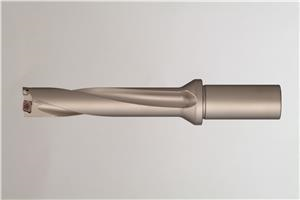

2.928 Inch Max Drill Depth, 5xD, 9/16 Diameter, Idexable Insert Drill

  • Item Code: WDX0562D5S075
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New balanced design for stable drilling
    • Three chipbreakers available for superior chip control
    • New insert grades for longer tool life: ACP300 for steel, ACK300 for cast iron
    • Four-cornered insert design for easy tool management

Tech Specs

Back To Top
Body Length 3.5190 Inch
Diameter (Decimal) 0.5620 Inch
Insert WDXT042004
Length of Cut 2.9280 Inch
Overall Length 5.5190 Inch
Screw BFTX01604N
Shank Diameter 0.7500 Inch
Product Type Indexable Drill
Collar Diameter 1.1020 Inch
Coolant Through (Yes/No) Yes
Series WDX
Wrench TRX06
Brand Sumitomo
Depth Diameter Ratio 5xD
End Type Single
Shank Length 2 Inch
