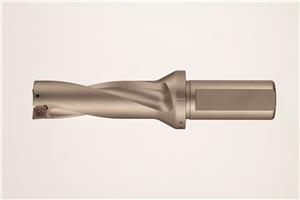

1.306 Inch Max Drill Depth, 2xD, 19/32 Inch Diameter, Indexable Insert Drill

  • Item Code: WDX0594D2S075
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New balanced design for stable drilling
    • Three chipbreakers available for superior chip control
    • New insert grades for longer tool life: ACP300 for steel, ACK300 for cast iron
    • Four-cornered insert design for easy tool management

Tech Specs

Back To Top
Body Length 1.8960 Inch
Diameter (Decimal) 0.5937 Inch
Length of Cut 1.3060 Inch
Overall Length 3.8960 Inch
Product Type Indexable Drill
Collar Diameter 1.1020 Inch
Brand Sumitomo
Depth Diameter Ratio 2xD
Insert WDXT042004
Series WDX
End Type Single
Shank Diameter 0.7500 Inch
Screw BFTX01604N
Shank Length 2 Inch
Wrench TRX06
Coolant Through (Yes/No) Yes
