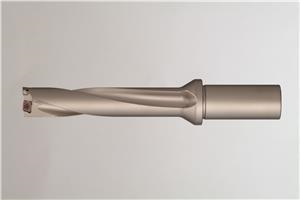

3.088 Inch Max Drill Depth, 5xD, 19/32 Inch Diameter, Indexable Insert Drill

  • Item Code: WDX0594D5S075
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New balanced design for stable drilling
    • Three chipbreakers available for superior chip control
    • New insert grades for longer tool life: ACP300 for steel, ACK300 for cast iron
    • Four-cornered insert design for easy tool management

Tech Specs

Back To Top
Body Length 3.6790 Inch
Collar Diameter 1.1020 Inch
Diameter (Decimal) 0.5940 Inch
Length of Cut 3.0880 Inch
Overall Length 5.6790 Inch
Brand Sumitomo
Coolant Through (Yes/No) Yes
Series WDX
Wrench TRX06
Shank Diameter 0.7500 Inch
Product Type Indexable Drill
Insert WDXT042004
Screw BFTX01604N
Shank Length 2 Inch
End Type Single
Depth Diameter Ratio 5xD
