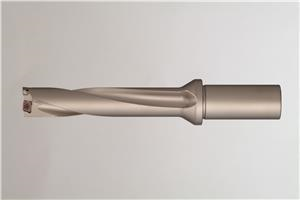

3.243 Inch Max Drill Depth, 5xD, 5/8 Inch Diameter, Indexable Insert Drill

  • Item Code: WDX0625D5S100
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New balanced design for stable drilling
    • Three chipbreakers available for superior chip control
    • New insert grades for longer tool life: ACP300 for steel, ACK300 for cast iron
    • Four-cornered insert design for easy tool management

Tech Specs

Back To Top
Body Length 3.8340 Inch
Length of Cut 3.2430 Inch
Overall Length 6.3340 Inch
Screw BFTX0204N
Collar Diameter 1.2600 Inch
Coolant Through (Yes/No) Yes
Wrench TRX06
Depth Diameter Ratio 5xD
Shank Diameter 1 Inch
Product Type Indexable Drill
Brand Sumitomo
Series WDX
Diameter (Decimal) 0.6250 Inch
End Type Single
Insert WDXT052504
Shank Length 2.5000 Inch
