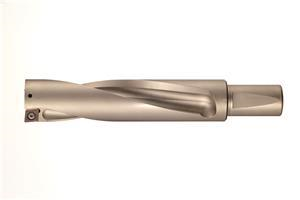

DRILL BODY WDX0656D4S100 SUMITOMO

  • Item Code: WDX0656D4S100
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New balanced design for stable drilling
    • Three chipbreakers available for superior chip control
    • New insert grades for longer tool life: ACP300 for steel, ACK300 for cast iron
    • Four-cornered insert design for easy tool management

Tech Specs

Back To Top
Body Length 3.3330 Inch
Diameter (Decimal) 0.6562 Inch
Length of Cut 2.7420 Inch
Overall Length 5.8330 Inch
End Type Single
Depth Diameter Ratio 4xD
Insert WDXT052504
Screw BFTX0204N
Coolant Through (Yes/No) Yes
Brand Sumitomo
Collar Diameter 1.2600 Inch
Series WDX
Shank Diameter 1 Inch
Product Type Indexable Drill
Shank Length 2.5000 Inch
Wrench TRX06
