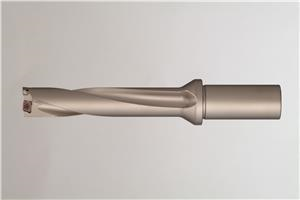

3.398 Inch Max Drill Depth, 5xD, 21/32 Inch Diameter, Indexable Insert Drill

  • Item Code: WDX0656D5S100
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New balanced design for stable drilling
    • Three chipbreakers available for superior chip control
    • New insert grades for longer tool life: ACP300 for steel, ACK300 for cast iron
    • Four-cornered insert design for easy tool management

Tech Specs

Back To Top
Body Length 3.9890 Inch
Diameter (Decimal) 0.6560 Inch
Length of Cut 3.3980 Inch
Overall Length 6.4890 Inch
Screw BFTX0204N
End Type Single
Collar Diameter 1.2600 Inch
Coolant Through (Yes/No) Yes
Shank Length 2.5000 Inch
Depth Diameter Ratio 5xD
Shank Diameter 1 Inch
Insert WDXT052504
Brand Sumitomo
Product Type Indexable Drill
Series WDX
Wrench TRX06
