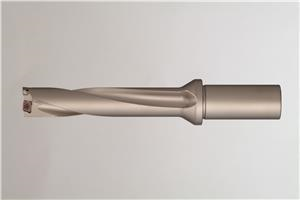

4.178 Inch Max Drill Depth, 5xD, 13/16 Inch Diameter, Indexable Insert Drill

  • Item Code: WDX0812D5S100
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New balanced design for stable drilling
    • Three chipbreakers available for superior chip control
    • New insert grades for longer tool life: ACP300 for steel, ACK300 for cast iron
    • Four-cornered insert design for easy tool management

Tech Specs

Back To Top
Body Length 4.7690 Inch
Diameter (Decimal) 0.8120 Inch
Length of Cut 4.1780 Inch
Overall Length 7.2690 Inch
Product Type Indexable Drill
Screw BFTY02206
Shank Length 2.5000 Inch
Brand Sumitomo
Depth Diameter Ratio 5xD
Series WDX
Shank Diameter 1 Inch
End Type Single
Insert WDXT063006
Wrench TRD07
Collar Diameter 1.2990 Inch
Coolant Through (Yes/No) Yes
