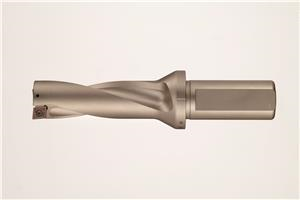

1.868 Inch Max Drill Depth, 2xD, 7/8 Inch Diameter, Indexable Insert Drill

  • Item Code: WDX0875D2S100
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New balanced design for stable drilling
    • Three chipbreakers available for superior chip control
    • New insert grades for longer tool life: ACP300 for steel, ACK300 for cast iron
    • Four-cornered insert design for easy tool management

Tech Specs

Back To Top
Body Length 2.4590 Inch
Length of Cut 1.8680 Inch
Overall Length 4.9590 Inch
Brand Sumitomo
Coolant Through (Yes/No) Yes
Depth Diameter Ratio 2xD
Series WDX
Collar Diameter 1.2990 Inch
Diameter (Decimal) 0.8750 Inch
Shank Diameter 1 Inch
Wrench TRD07
Product Type Indexable Drill
Shank Length 2.5000 Inch
Screw BFTY02206
Insert WDXT063006
End Type Single
