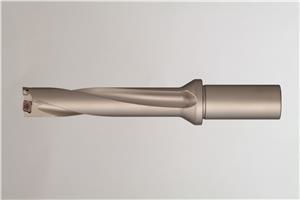

4.493 Inch Max Drill Depth, 5xD, 7/8 Inch Diameter, Indexable Insert Drill

  • Item Code: WDX0875D5S100
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New balanced design for stable drilling
    • Three chipbreakers available for superior chip control
    • New insert grades for longer tool life: ACP300 for steel, ACK300 for cast iron
    • Four-cornered insert design for easy tool management

Tech Specs

Back To Top
Body Length 5.0840 Inch
Diameter (Decimal) 0.8750 Inch
Length of Cut 4.4930 Inch
Overall Length 7.5840 Inch
Shank Length 2.5000 Inch
Collar Diameter 1.2990 Inch
Wrench TRD07
Shank Diameter 1 Inch
Brand Sumitomo
Coolant Through (Yes/No) Yes
Series WDX
End Type Single
Depth Diameter Ratio 5xD
Screw BFTY02206
Insert WDXT063006
Product Type Indexable Drill
