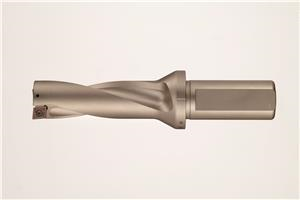

1.993 Inch Max Drill Depth, 2xD, 15/16 Inch Diameter, Indexable Insert Drill

  • Item Code: WDX0937D2S125
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New balanced design for stable drilling
    • Three chipbreakers available for superior chip control
    • New insert grades for longer tool life: ACP300 for steel, ACK300 for cast iron
    • Four-cornered insert design for easy tool management

Tech Specs

Back To Top
Body Length 2.7020 Inch
Insert WDXT073506
Overall Length 5.2020 Inch
Wrench TRD08
Length of Cut 1.9930 Inch
Collar Diameter 1.6140 Inch
End Type Single
Coolant Through (Yes/No) Yes
Diameter (Decimal) 0.9375 Inch
Shank Diameter 1.2500 Inch
Depth Diameter Ratio 2xD
Product Type Indexable Drill
Shank Length 2.5000 Inch
Brand Sumitomo
Series WDX
Screw BFTX02506N
