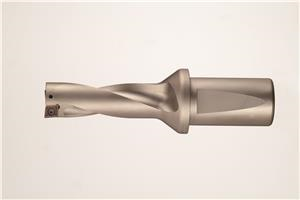

2.931 Inch Max Drill Depth, 3xD, 15/16 Inch Diameter, Indexable Insert Drill
- Item Code: WDX0937D3S125
- Brand: Sumitomo
- Unit Size: 1
- New balanced design for stable drilling
- Three chipbreakers available for superior chip control
- New insert grades for longer tool life: ACP300 for steel, ACK300 for cast iron
- Four-cornered insert design for easy tool management
| Body Length |
3.6390 Inch |
| Length of Cut |
2.9310 Inch |
| Overall Length |
6.1390 Inch |
| End Type |
Single |
| Insert |
WDXT073506 |
| Screw |
BFTX02506N |
| Brand |
Sumitomo |
| Series |
WDX |
| Shank Diameter |
1.2500 Inch |
| Coolant Through (Yes/No) |
Yes |
| Depth Diameter Ratio |
3xD |
| Diameter (Decimal) |
0.9375 Inch |
| Wrench |
TRD08 |
| Shank Length |
2.5000 Inch |
| Collar Diameter |
1.6140 Inch |
| Product Type |
Indexable Drill |
