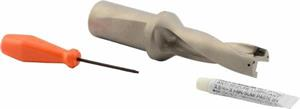

3.118 Inch Max Drill Depth, 3xD, 1 Inch Diameter, Indexable Insert Drill

  • Item Code: WDX1000D3S125
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New balanced design for stable drilling
    • Three chipbreakers available for superior chip control
    • New insert grades for longer tool life: ACP300 for steel, ACK300 for cast iron
    • Four-cornered insert design for easy tool management

Tech Specs

Back To Top
Body Length 3.8270 Inch
Length of Cut 3.1180 Inch
Overall Length 6.3270 Inch
Series WDX
Diameter (Decimal) 1 Inch
Collar Diameter 1.6140 Inch
End Type Single
Screw BFTX02506N
Insert WDXT073506
Wrench TRD08
Brand Sumitomo
Coolant Through (Yes/No) Yes
Depth Diameter Ratio 3xD
Product Type Indexable Drill
Shank Diameter 1.2500 Inch
Shank Length 2.5000 Inch
