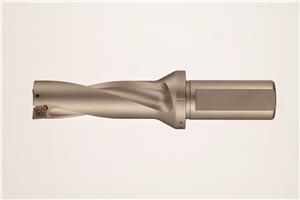

2.368 Inch Max Drill Depth, 2xD, 1-1/8 Inch Diameter, Indexable Insert Drill

  • Item Code: WDX1125D2S125
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New balanced design for stable drilling
    • Three chipbreakers available for superior chip control
    • New insert grades for longer tool life: ACP300 for steel, ACK300 for cast iron
    • Four-cornered insert design for easy tool management

Tech Specs

Back To Top
Body Length 3.0770 Inch
Diameter (Decimal) 1.1250 Inch
Length of Cut 2.3680 Inch
Overall Length 6.0770 Inch
Product Type Indexable Drill
Wrench TRD08
Collar Diameter 1.6140 Inch
End Type Single
Insert WDXT073506
Screw BFTX02506N
Shank Length 3 Inch
Depth Diameter Ratio 2xD
Brand Sumitomo
Series WDX
Coolant Through (Yes/No) Yes
Shank Diameter 1.2500 Inch
