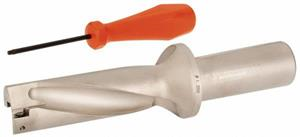

3.907 Inch Max Drill Depth, 3xD, 1-1/4 Inch Diameter, Indexable Insert Drill

  • Item Code: WDX1250D3S125
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New balanced design for stable drilling
    • Three chipbreakers available for superior chip control
    • New insert grades for longer tool life: ACP300 for steel, ACK300 for cast iron
    • Four-cornered insert design for easy tool management

Tech Specs

Back To Top
Body Length 4.7340 Inch
Length of Cut 3.9070 Inch
Overall Length 7.7340 Inch
Shank Length 3 Inch
End Type Single
Brand Sumitomo
Series WDX
Diameter (Decimal) 1.2500 Inch
Insert WDXT094008
Screw BFTX03584
Coolant Through (Yes/No) Yes
Depth Diameter Ratio 3xD
Shank Diameter 1.2500 Inch
Collar Diameter 1.9680 Inch
Product Type Indexable Drill
Wrench TRX15
