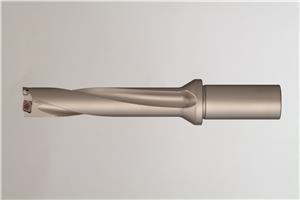

7.697 Inch Max Drill Depth, 5xD, 1-1/2 Inch Diameter, Indexable Insert Drill

  • Item Code: WDX1500D5S150
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New balanced design for stable drilling
    • Three chipbreakers available for superior chip control
    • New insert grades for longer tool life: ACP300 for steel, ACK300 for cast iron
    • Four-cornered insert design for easy tool management

Tech Specs

Back To Top
Body Length 8.8780 Inch
Length of Cut 7.6970 Inch
Overall Length 11.8780 Inch
Wrench TRD20
Brand Sumitomo
Coolant Through (Yes/No) Yes
Diameter (Decimal) 1.5000 Inch
Series WDX
Shank Length 3 Inch
Shank Diameter 1.5000 Inch
Insert WDXT125012
Product Type Indexable Drill
Collar Diameter 1.9490 Inch
Depth Diameter Ratio 5xD
End Type Single
Screw BFTX0511N
