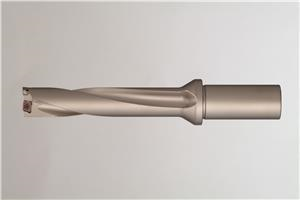

88mm Max Drill Depth, 5xD, 17mm Diameter, Indexable Insert Drill

  • Item Code: WDX170D5S20
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New balanced design for stable drilling
    • Three chipbreakers available for superior chip control
    • New insert grades for longer tool life: ACP300 for steel, ACK300 for cast iron
    • Four-cornered insert design for easy tool management

Tech Specs

Back To Top
Body Length 103.0 MM
Collar Diameter 30.0 MM
Diameter (Metric) 17.0 MM
Insert WDXT 052504
Length of Cut 88.0 MM
Shank Diameter 20.0 MM
Brand Sumitomo
End Type Single
Overall Length 147.0 MM
Depth Diameter Ratio 4xD
Product Type Indexable Drill
Series WDX
Coolant Through (Yes/No) Yes
Shank Length 44.0 MM
