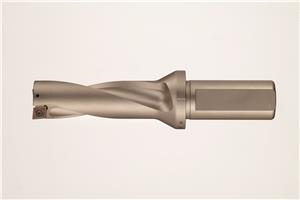

4.033 Inch Max Drill Depth, 2xD, 1-15/16 Inch Diameter, Indexable Insert Drill

  • Item Code: WDX1937D2S150
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New balanced design for stable drilling
    • Three chipbreakers available for superior chip control
    • New insert grades for longer tool life: ACP300 for steel, ACK300 for cast iron
    • Four-cornered insert design for easy tool management

Tech Specs

Back To Top
Body Length 4.9780 Inch
Diameter (Decimal) 1.9375 Inch
Length of Cut 4.0330 Inch
Overall Length 7.9780 Inch
Collar Diameter 1.9490 Inch
Shank Diameter 1.5000 Inch
Coolant Through (Yes/No) Yes
Insert WDXT156012
Series WDX
Shank Length 3 Inch
Wrench TRD25
End Type Single
Brand Sumitomo
Screw BFTX0615N
Depth Diameter Ratio 2xD
Product Type Indexable Drill
