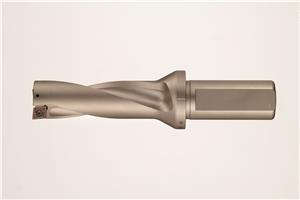

44mm Max Drill Depth, 2xD, 20.5mm Diameter, Indexable Insert Drill

  • Item Code: WDX205D2S25
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New balanced design for stable drilling
    • Three chipbreakers available for superior chip control
    • New insert grades for longer tool life: ACP300 for steel, ACK300 for cast iron
    • Four-cornered insert design for easy tool management

Tech Specs

Back To Top
Body Length 59 MM
Diameter (Metric) 20.5 MM
Length of Cut 44 MM
Overall Length 115 MM
End Type Single
Insert WDXT 063006
Brand Sumitomo
Collar Diameter 33.0 MM
Series WDX
Shank Length 56 MM
Shank Diameter 25 MM
Coolant Through (Yes/No) Yes
Depth Diameter Ratio 2xD
Product Type Indexable Drill
