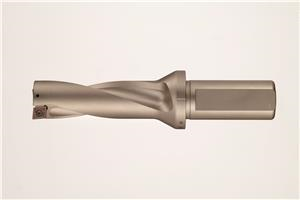

4.407 Inch Max Drill Depth, 2xD, 2-1/8 Inch Diameter, Indexable Insert Drill

  • Item Code: WDX2125D2S150
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New balanced design for stable drilling
    • Three chipbreakers available for superior chip control
    • New insert grades for longer tool life: ACP300 for steel, ACK300 for cast iron
    • Four-cornered insert design for easy tool management

Tech Specs

Back To Top
Body Length 5.3520 Inch
Diameter (Decimal) 2.1250 Inch
Length of Cut 4.4070 Inch
Overall Length 8.3520 Inch
Product Type Indexable Drill
Brand Sumitomo
Coolant Through (Yes/No) Yes
Depth Diameter Ratio 2xD
Series WDX
Shank Length 3 Inch
Wrench TRD25
Screw BFTX0615N
Shank Diameter 1.5000 Inch
Collar Diameter 1.9490 Inch
End Type Single
Insert WDXT156012
