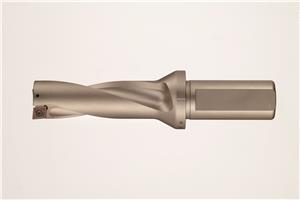

46mm Max Drill Depth, 2xD, 21.5mm Diameter, Indexable Insert Drill

  • Item Code: WDX215D2S25
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New balanced design for stable drilling
    • Three chipbreakers available for superior chip control
    • New insert grades for longer tool life: ACP300 for steel, ACK300 for cast iron
    • Four-cornered insert design for easy tool management

Tech Specs

Back To Top
Body Length 61 MM
Collar Diameter 33.0 MM
Diameter (Metric) 21.5 MM
Length of Cut 46 MM
Overall Length 117 MM
Shank Diameter 25 MM
Depth Diameter Ratio 2xD
Insert WDXT 063006
End Type Single
Product Type Indexable Drill
Coolant Through (Yes/No) Yes
Brand Sumitomo
Shank Length 56 MM
Series WDX
