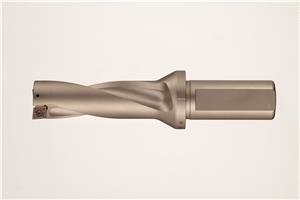

53mm Max Drill Depth, 2xD, 25mm Diameter, Indexable Insert Drill

  • Item Code: WDX250D2S25
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New balanced design for stable drilling
    • Three chipbreakers available for superior chip control
    • New insert grades for longer tool life: ACP300 for steel, ACK300 for cast iron
    • Four-cornered insert design for easy tool management

Tech Specs

Back To Top
Body Length 71 MM
Diameter (Metric) 25.0 MM
Length of Cut 53 MM
Collar Diameter 37.0 MM
Shank Diameter 25 MM
Brand Sumitomo
Coolant Through (Yes/No) Yes
Series WDX
End Type Single
Overall Length 127 MM
Shank Length 56 MM
Depth Diameter Ratio 2xD
Insert WDXT 073506
Product Type Indexable Drill
