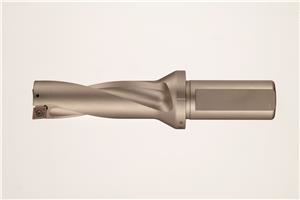

79mm Max Drill Depth, 2xD, 37mm Diameter, Indexable Insert Drill

  • Item Code: WDX370D2S40
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New balanced design for stable drilling
    • Three chipbreakers available for superior chip control
    • New insert grades for longer tool life: ACP300 for steel, ACK300 for cast iron
    • Four-cornered insert design for easy tool management

Tech Specs

Back To Top
Body Length 109 MM
Diameter (Metric) 37.0 MM
Length of Cut 79 MM
Overall Length 179 MM
End Type Single
Shank Diameter 40 MM
Brand Sumitomo
Series WDX
Collar Diameter 49.5 MM
Shank Length 70 MM
Coolant Through (Yes/No) Yes
Depth Diameter Ratio 2xD
Insert WDXT 125012
Product Type Indexable Drill
