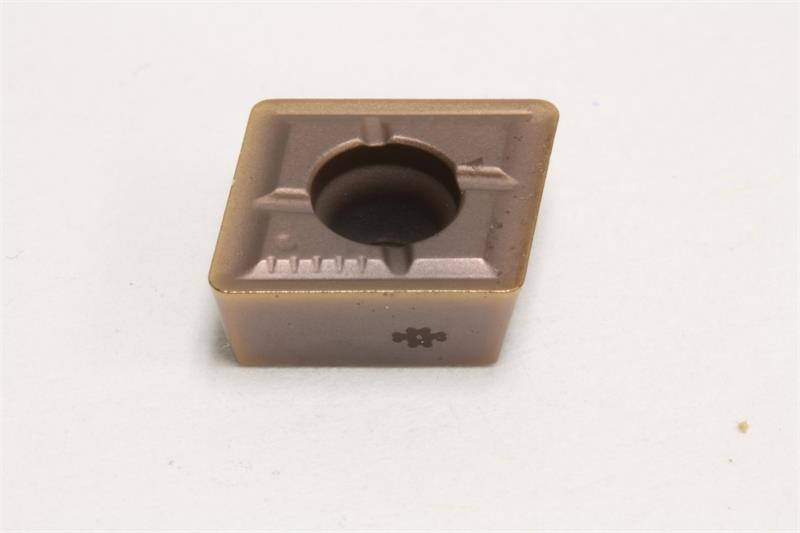

WDXT063006-G Grade ACP300 Carbide Chipbreaker Milling Insert

  • Item Code: WDXT063006G ACP300
  • Brand: Sumitomo
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Chipbreaker G
Corner Radius (mm) 0.60mm
Inscribed Circle (Decimal Equiv.) 0.2362
Inscribed Circle (metric) 6.00mm
Insert Size 06
Insert Style WDXT
Mfg's Grade ACP300
Thickness (Decimal Equiv.) 0.1181
Thickness (metric) 3.00mm
Width (Decimal Equiv.) 0.2362
Width (metric) 6.00mm
Material Solid Carbide
Product Type Milling
Brand Sumitomo
