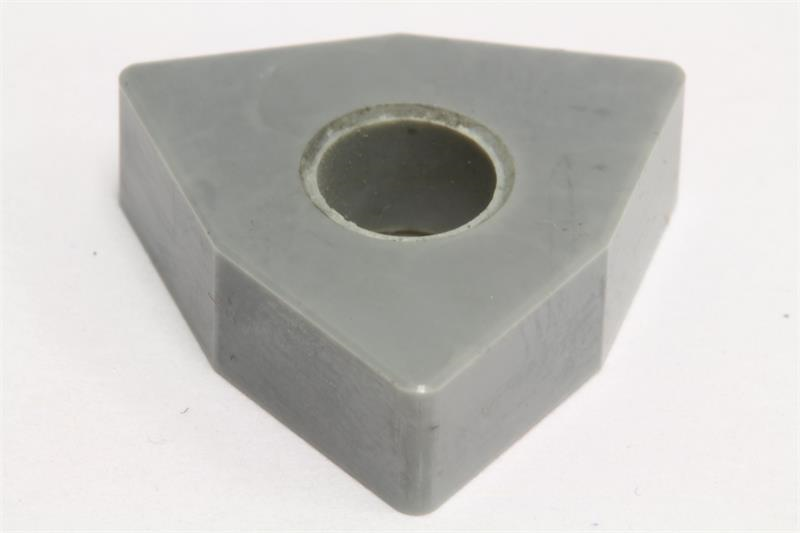

WNGA433 SN2000K Grade, Ceramic Turning Insert

  • Item Code: WNGA433-SN2000K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.

Tech Specs

Back To Top
Insert Style WNGA
Corner Radius 0.0469 Inch
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Applicable Materials Cast Iron, Exotic Materials, Hardened Steel
Insert Size 433
Number of Edges 3
Material Ceramic
Brand Sumitomo
Coating/Finish Ceramic
Included Angle 80
Product Name Turning Insert
Shape Trigon
Inscribed Circle 0.5000 Inch
Insert Type Negative
Thickness 0.1875 Inch
Grade SN2000K
