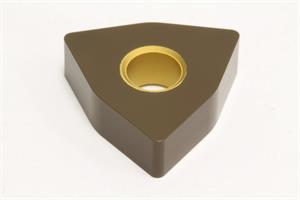

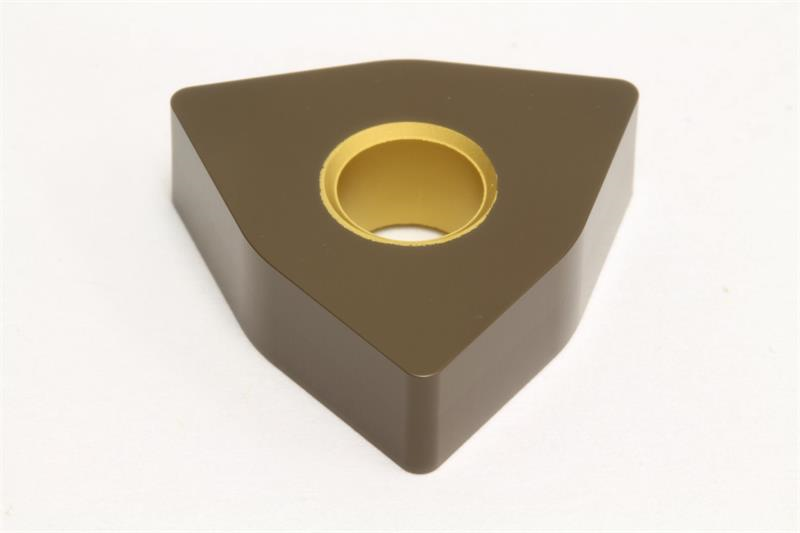

WNMA432 AC420K Grade, Proprietary Coated, Carbide Turning Insert

  • Item Code: WNMA432 AC420K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type No
Included Angle 80
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Brand Sumitomo
Relief Angle 0 Degree
Shape Trigon
Material Solid Carbide
Number of Edges 3
Grade AC420K
Corner Radius 0.0313 Inch
Insert Style WNMA
Insert Type Negative
Product Name Turning Insert
Inscribed Circle 0.5000 Inch
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
