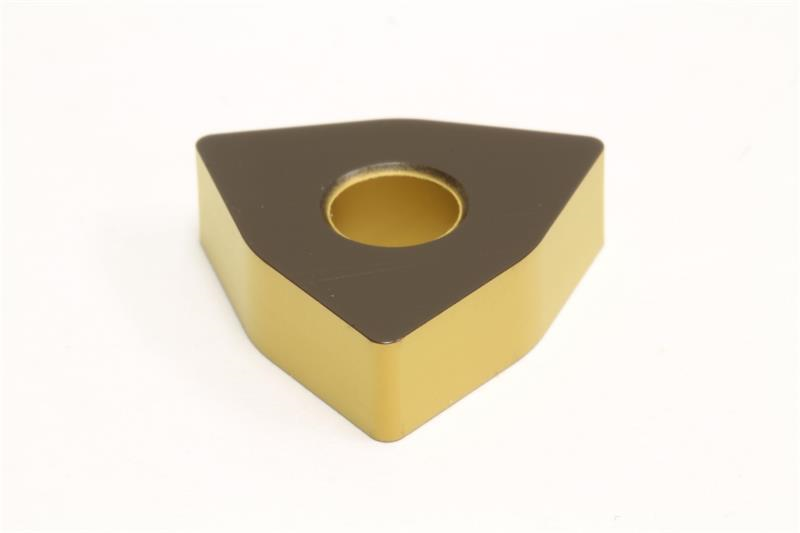

WNMA432 AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: WNMA432 AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type No
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Number of Edges 3
Relief Angle 0 Degree
Coating/Finish Coated
Inscribed Circle 0.5000 Inch
Insert Type Negative
Product Name Turning Insert
Thickness 0.1875 Inch
Corner Radius 0.0313 Inch
Insert Style WNMA
Included Angle 80
Brand Sumitomo
Grade AC700G
Shape Trigon
