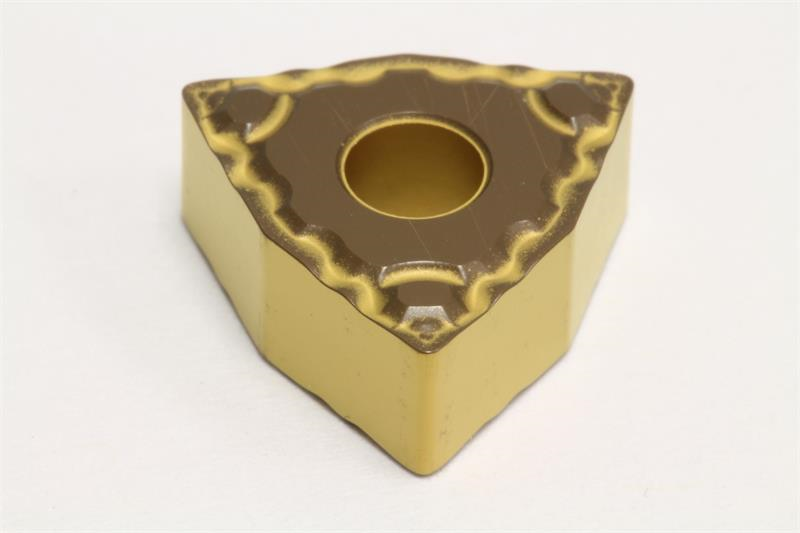

WNMG331 ELUW AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: WNMG331ELUW AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style WNMG
Mounting Hole Diameter 0.1500 Inch
Number of Edges 3
Product Name Turning Insert
Thickness 0.1875 Inch
Chipbreaker Type ELUW
Coating/Finish Coated
Included Angle 80
Material Solid Carbide
Brand Sumitomo
Corner Radius 0.0156 Inch
Grade AC700G
Insert Size 331
Rake Angle 10 Degree
Shape Trigon
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.3750 Inch
Insert Type Negative
Relief Angle 0 Degree
