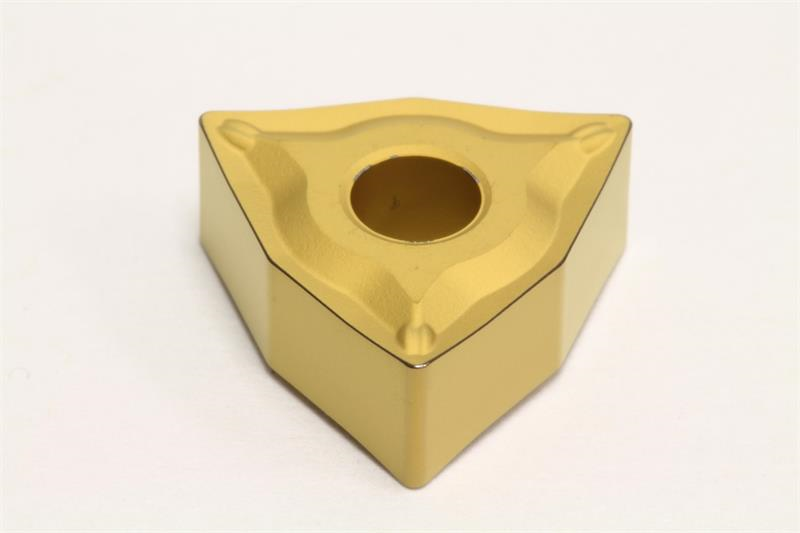

WNMG331 ESU AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: WNMG331ESU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Product Name Turning Insert
Thickness 0.1875 Inch
Grade AC700G
Relief Angle 0 Degree
Chipbreaker Type ESU
Mounting Hole Diameter 0.1500 Inch
Coating/Finish Coated
Insert Type Negative
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Style WNMG
Brand Sumitomo
Included Angle 80
Insert Size 331
Shape Trigon
Corner Radius 0.0156 Inch
Inscribed Circle 0.3750 Inch
Rake Angle 13 Degree
Number of Edges 3
