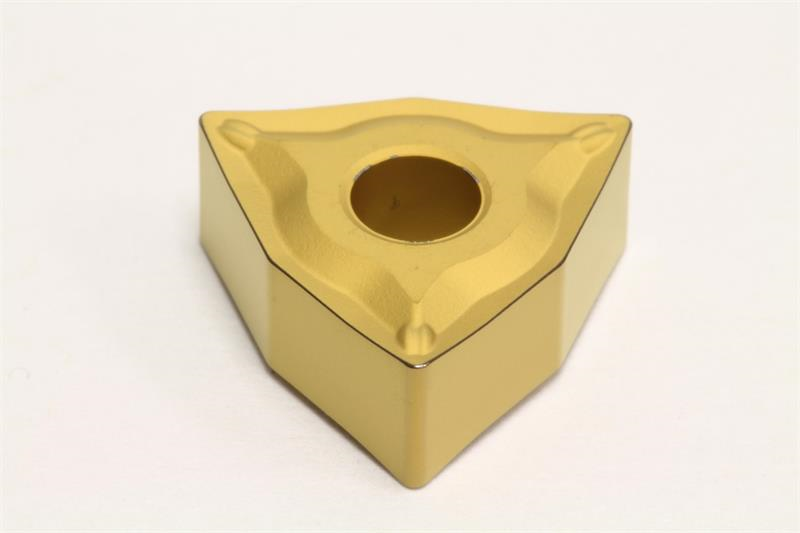

WNMG331 ESU AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: WNMG331ESU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 331
Number of Edges 3
Product Name Turning Insert
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Style WNMG
Insert Type Negative
Brand Sumitomo
Chipbreaker Type ESU
Grade AC820P
Inscribed Circle 0.3750 Inch
Mounting Hole Diameter 0.1500 Inch
Rake Angle 13 Degree
Shape Trigon
Corner Radius 0.0156 Inch
Coating/Finish CVD
Included Angle 80
Relief Angle 0 Degree
Material Solid Carbide
