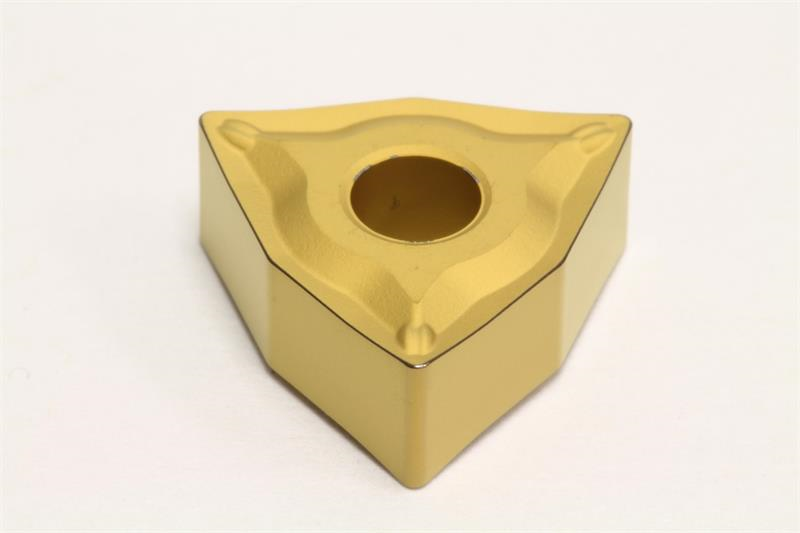

WNMG331 ESU AC830P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: WNMG331ESU AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type ESU
Coating/Finish CVD
Grade AC830P
Mounting Hole Diameter 0.1500 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Style WNMG
Number of Edges 3
Product Name Turning Insert
Thickness 0.1875 Inch
Included Angle 80
Insert Type Negative
Relief Angle 0 Degree
Inscribed Circle 0.3750 Inch
Rake Angle 13 Degree
Brand Sumitomo
Corner Radius 0.0156 Inch
Insert Size 331
Shape Trigon
Material Solid Carbide
