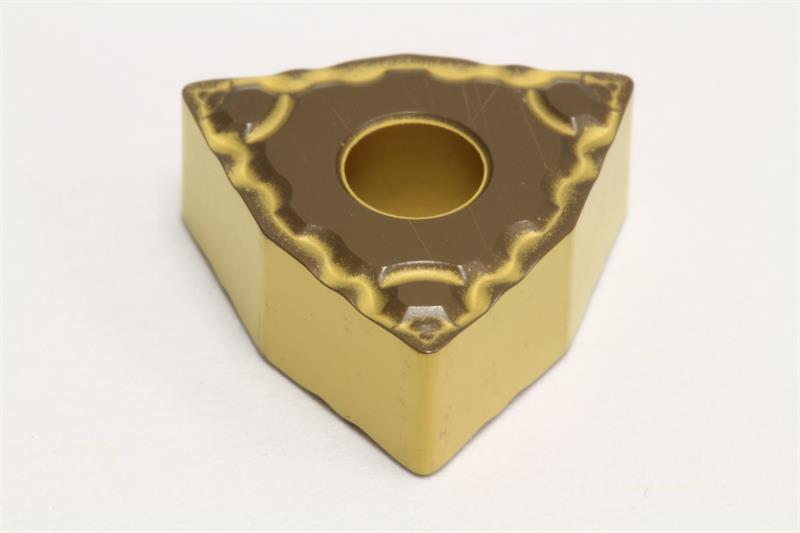

WNMG332 ELUW AC630M Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: WNMG332ELUW AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0313 Inch
Grade AC630M
Insert Size 332
Relief Angle 0 Degree
Chipbreaker Type ELUW
Coating/Finish CVD
Included Angle 80
Material Solid Carbide
Rake Angle 10 Degree
Insert Type Negative
Inscribed Circle 0.3750 Inch
Number of Edges 3
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Style WNMG
Brand Sumitomo
Mounting Hole Diameter 0.1500 Inch
Product Name Turning Insert
Shape Trigon
