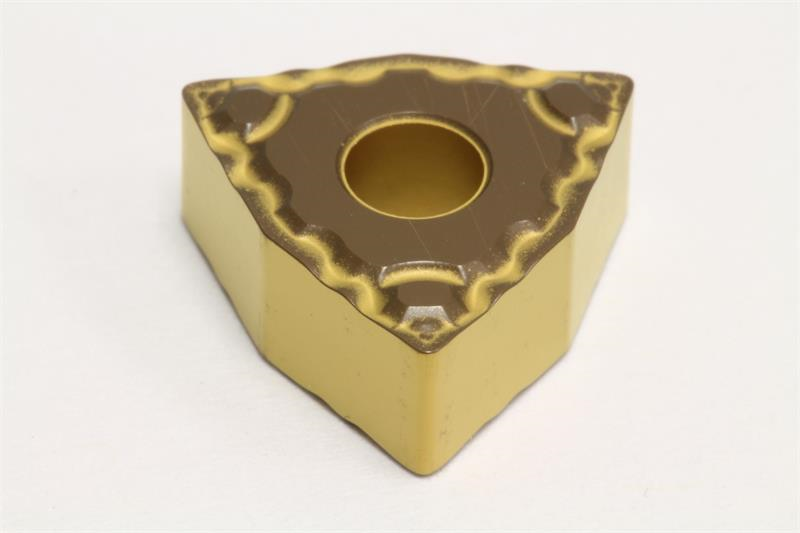

WNMG332 ELUW AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: WNMG332ELUW AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC820P
Material Solid Carbide
Number of Edges 3
Included Angle 80
Relief Angle 0 Degree
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Product Name Turning Insert
Shape Trigon
Chipbreaker Type ELUW
Thickness 0.1875 Inch
Corner Radius 0.0313 Inch
Insert Size 332
Rake Angle 10 Degree
Insert Style WNMG
Insert Type Negative
Mounting Hole Diameter 0.1500 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
