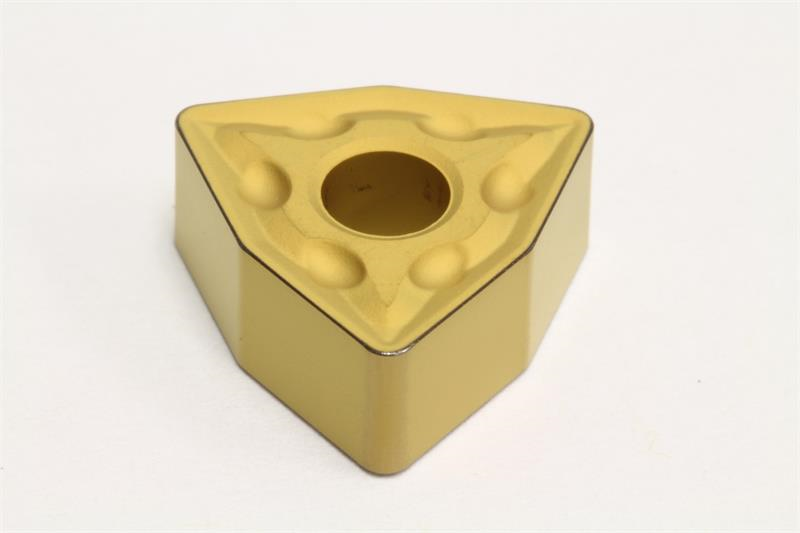

WNMG332 EMU AC830P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: WNMG332EMU AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style WNMG
Number of Edges 3
Material Solid Carbide
Brand Sumitomo
Included Angle 80
Inscribed Circle 0.3750 Inch
Shape Trigon
Insert Type Negative
Relief Angle 0 Degree
Corner Radius 0.0313 Inch
Insert Size 332
Chipbreaker Type EMU
Grade AC830P
Thickness 0.1875 Inch
Mounting Hole Diameter 0.1500 Inch
Product Name Turning Insert
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Rake Angle 4 Degree
