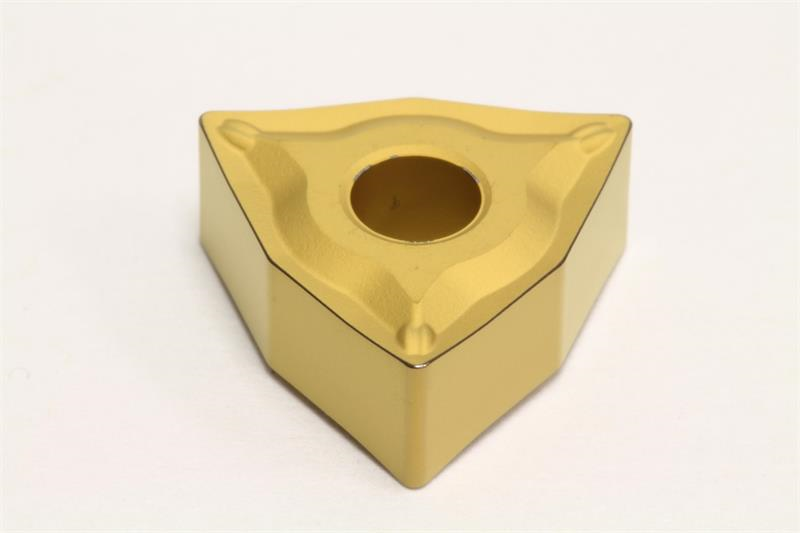

WNMG332 ESU AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: WNMG332ESU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type ESU
Brand Sumitomo
Shape Trigon
Inscribed Circle 0.3750 Inch
Rake Angle 13 Degree
Corner Radius 0.0313 Inch
Insert Size 332
Product Name Turning Insert
Thickness 0.1875 Inch
Included Angle 80
Mounting Hole Diameter 0.1500 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Style WNMG
Number of Edges 3
Insert Type Negative
Relief Angle 0 Degree
Coating/Finish Coated
Grade AC700G
Material Solid Carbide
