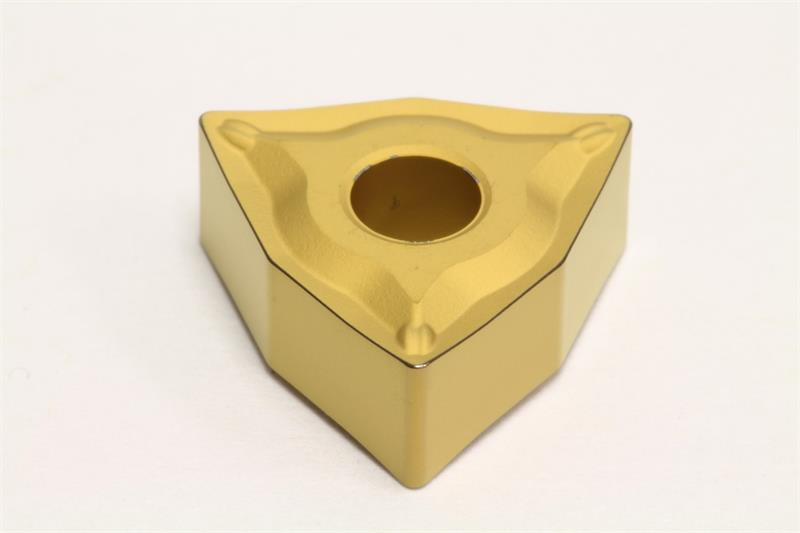

WNMG332 ESU AC810P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: WNMG332ESU AC810P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Number of Edges 3
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Rake Angle 13 Degree
Shape Trigon
Coating/Finish CVD
Thickness 0.1875 Inch
Included Angle 80
Insert Style WNMG
Insert Type Negative
Relief Angle 0 Degree
Chipbreaker Type ESU
Corner Radius 0.0313 Inch
Grade AC810P
Insert Size 332
Mounting Hole Diameter 0.1500 Inch
Product Name Turning Insert
Material Solid Carbide
