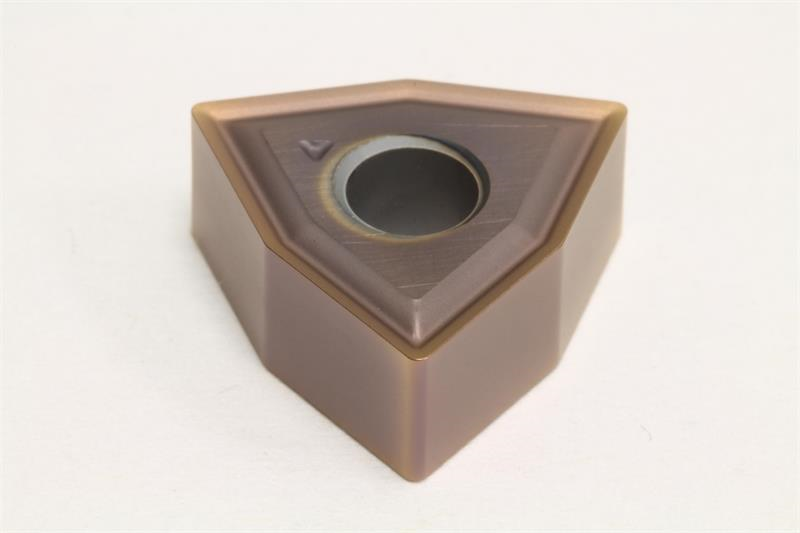

WNMG431 EEX AC510U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: WNMG431EEX AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Brand Sumitomo
Shape Trigon
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Inscribed Circle 0.5000 Inch
Insert Style WNMG
Insert Type Negative
Rake Angle 16 Degree
Product Name Turning Insert
Thickness 0.1875 Inch
Grade AC510U
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Chipbreaker Type EEX
Corner Radius 0.0156 Inch
Insert Size 431
Material Solid Carbide
Number of Edges 3
Included Angle 80
