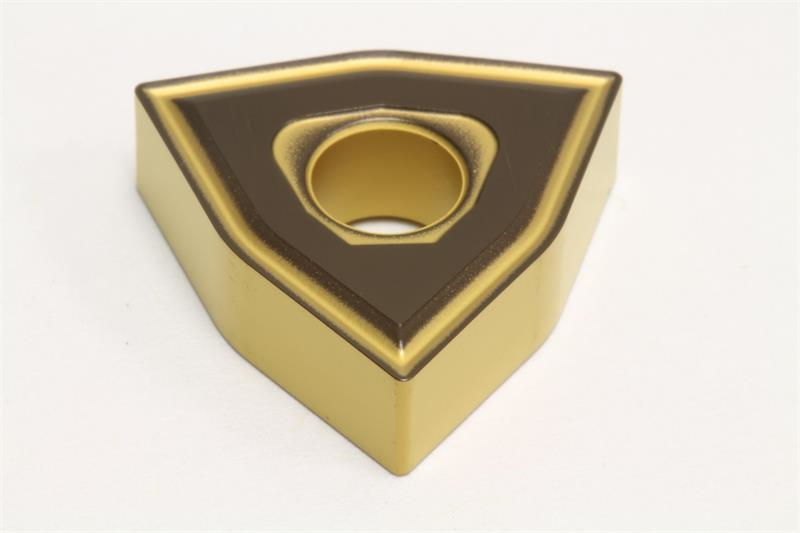

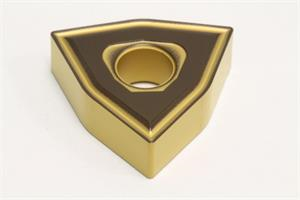

WNMG431 EEX AC630M Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: WNMG431EEX AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC630M
Relief Angle 0 Degree
Brand Sumitomo
Product Name Turning Insert
Shape Trigon
Thickness 0.1875 Inch
Coating/Finish CVD
Inscribed Circle 0.5000 Inch
Number of Edges 3
Corner Radius 0.0156 Inch
Insert Size 431
Included Angle 80
Mounting Hole Diameter 0.2031 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Style WNMG
Insert Type Negative
Rake Angle 16 Degree
Chipbreaker Type EEX
Material Solid Carbide
