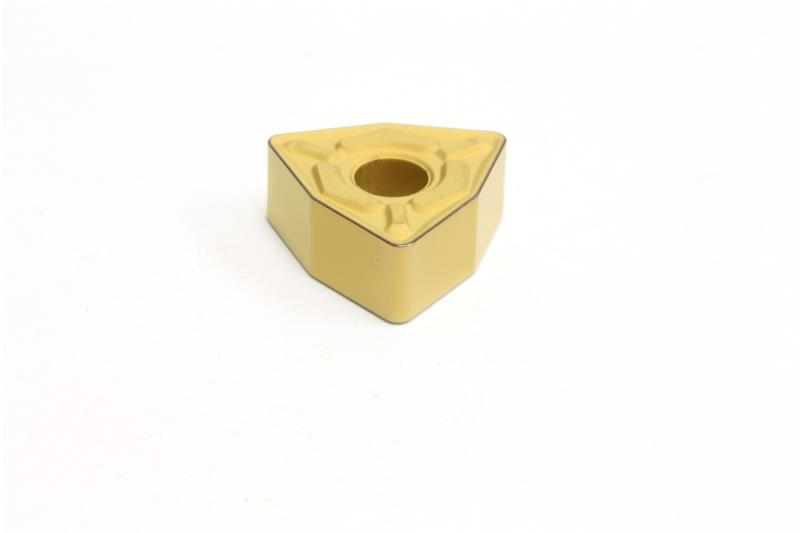

WNMG431 EGU AC610M Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: WNMG431EGU AC610M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0156 Inch
Insert Size 431
Grade AC610M
Product Name Turning Insert
Rake Angle 7 Degree
Thickness 0.1875 Inch
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Included Angle 80
Inscribed Circle 0.5000 Inch
Insert Style WNMG
Number of Edges 3
Brand Sumitomo
Shape Trigon
Chipbreaker Type EGU
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
