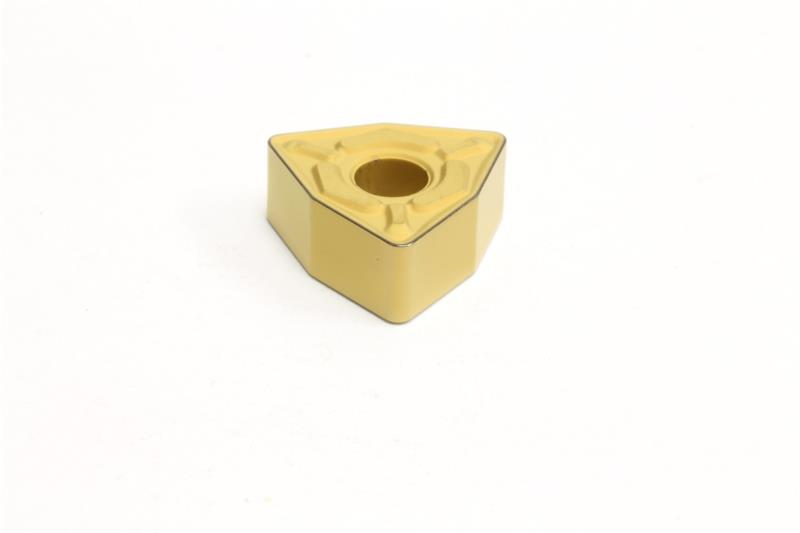

WNMG431 EGU AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: WNMG431EGU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Chipbreaker Type EGU
Coating/Finish CVD
Included Angle 80
Brand Sumitomo
Grade AC820P
Product Name Turning Insert
Shape Trigon
Material Solid Carbide
Corner Radius 0.0156 Inch
Inscribed Circle 0.5000 Inch
Insert Size 431
Insert Type Negative
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Style WNMG
Number of Edges 3
Rake Angle 7 Degree
Thickness 0.1875 Inch
