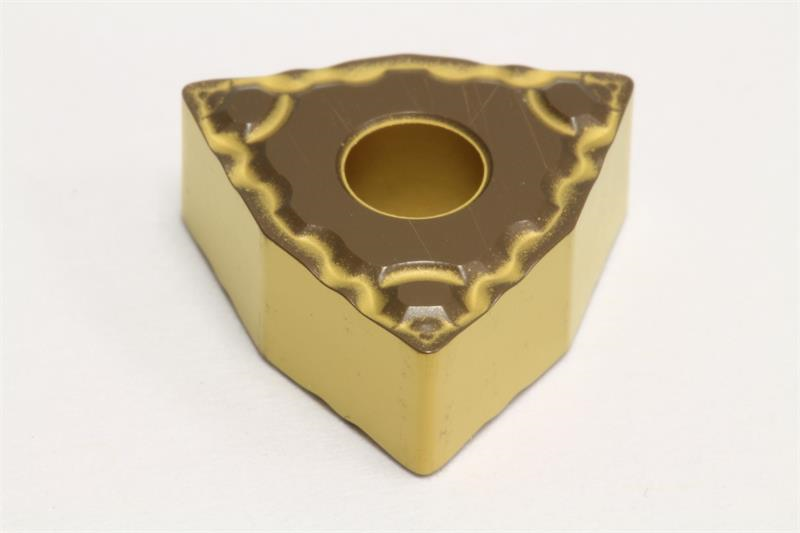

WNMG431 ELUW AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: WNMG431ELUW AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type ELUW
Brand Sumitomo
Shape Trigon
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Corner Radius 0.0156 Inch
Insert Size 431
Number of Edges 3
Rake Angle 10 Degree
Included Angle 80
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Insert Style WNMG
Thickness 0.1875 Inch
Grade AC820P
Product Name Turning Insert
Inscribed Circle 0.5000 Inch
