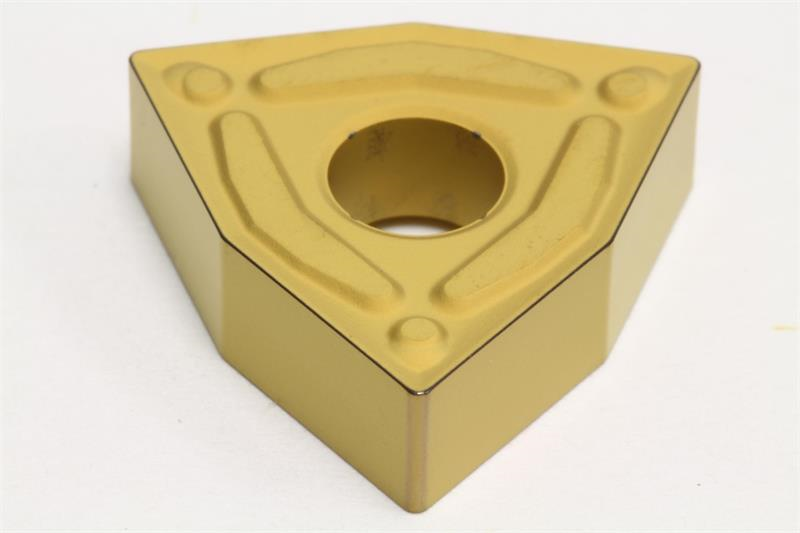

WNMG431 ENG AC820P Grade, Carbide Turning Insert
- Item Code: WNMG431ENG AC820P
- Brand: Sumitomo
- Unit Size: 1
Description
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Features
Back To Top- Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Tech Specs
Back To Top| Product Name | Turning Insert |
|---|---|
| Thickness | 0.1875 Inch |
| Mounting Hole Diameter | 0.2031 Inch |
| Relief Angle | 0 Degree |
| Chipbreaker Type | ENG |
| Grade | AC820P |
| Inscribed Circle | 0.5000 Inch |
| Insert Type | Negative |
| Corner Radius | 0.0156 Inch |
| Insert Size | 431 |
| Brand | Sumitomo |
| Included Angle | 80 |
| Shape | Trigon |
| Material | Solid Carbide |
| Number of Edges | 3 |
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel |
| Coating/Finish | CVD |
| Insert Style | WNMG |
| Rake Angle | 4 Degree |
