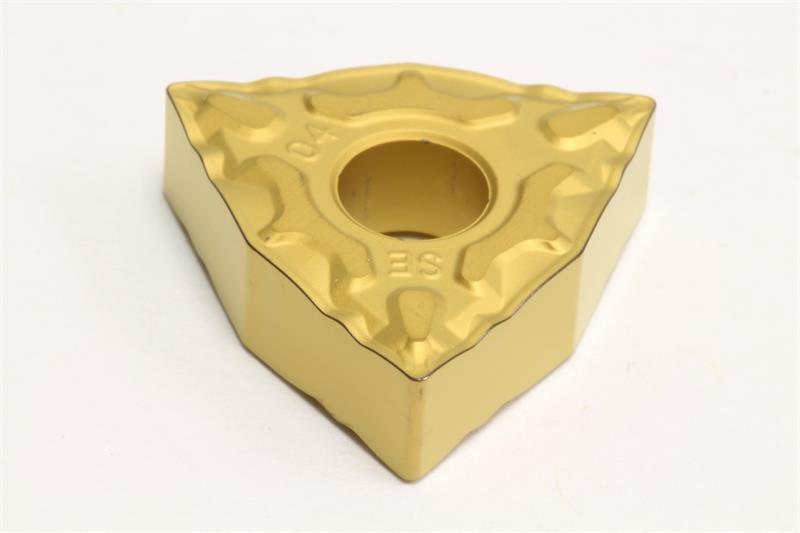

WNMG431 ESE AC810P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: WNMG431ESE AC810P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Coating/Finish CVD
Grade AC810P
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.5000 Inch
Insert Style WNMG
Number of Edges 3
Product Name Turning Insert
Thickness 0.1875 Inch
Rake Angle 13 Degree
Included Angle 80
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Brand Sumitomo
Chipbreaker Type ESE
Corner Radius 0.0156 Inch
Insert Size 431
Shape Trigon
Material Solid Carbide
