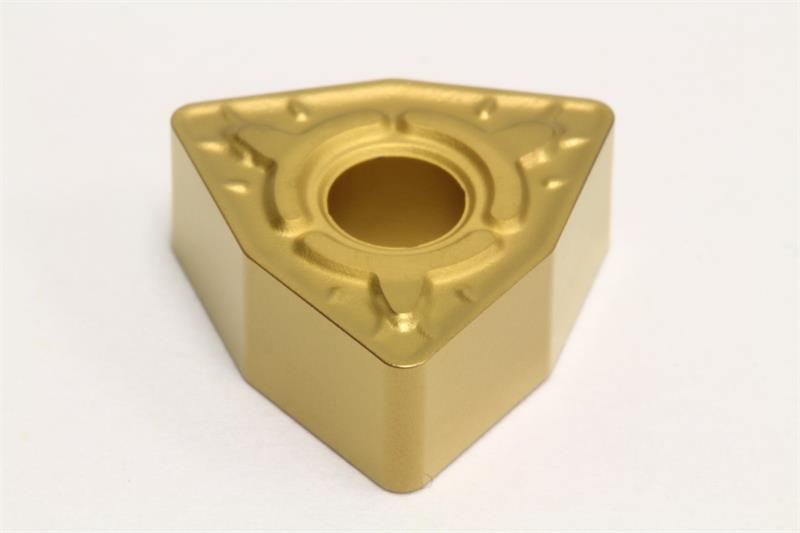

WNMG432 EGE AC810P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: WNMG432EGE AC810P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Thickness 0.1875 Inch
Product Name Turning Insert
Rake Angle 3 Degree
Included Angle 80
Inscribed Circle 0.5000 Inch
Insert Type Negative
Brand Sumitomo
Grade AC810P
Shape Trigon
Corner Radius 0.0313 Inch
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Material Solid Carbide
Number of Edges 3
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type EGE
Coating/Finish CVD
Insert Style WNMG
