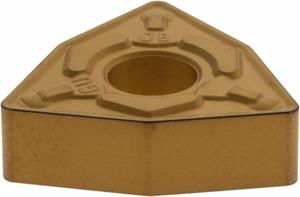

WNMG432 EGU AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: WNMG432EGU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type EGU
Material Solid Carbide
Brand Sumitomo
Shape Trigon
Inscribed Circle 0.5000 Inch
Number of Edges 3
Insert Size 432
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Coating/Finish CVD
Included Angle 80
Product Name Turning Insert
Corner Radius 0.0313 Inch
Rake Angle 7 Degree
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Grade AC820P
Insert Style WNMG
